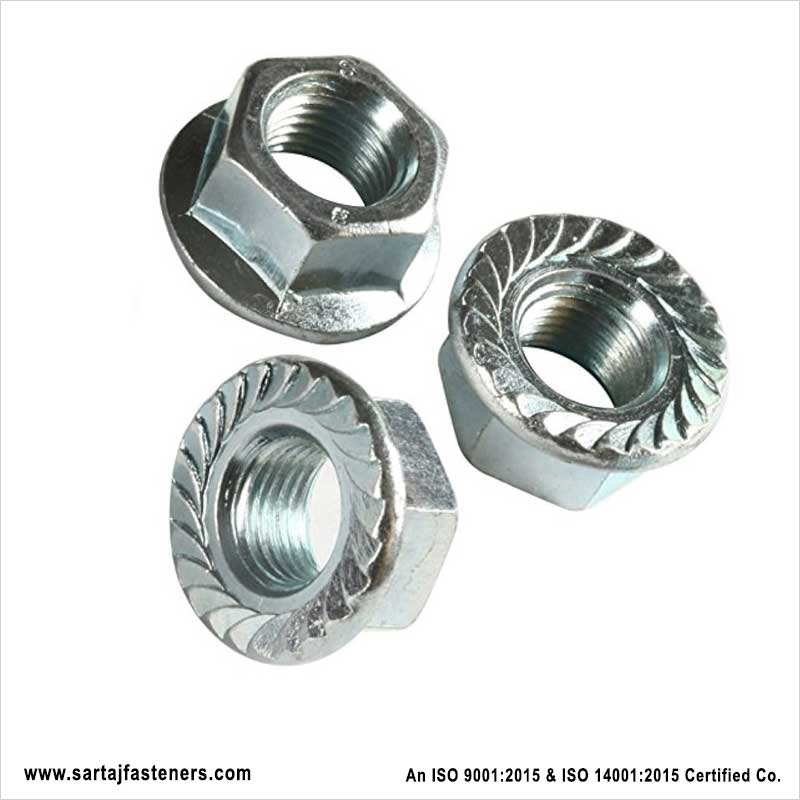

Flange Nut Serrated
DIN 6923
Flange Nuts Serrated are hex nuts with non-spinning washers attached at the bottom. Underneath the washers are serrations which allow the nuts to securely fasten when vibrations are present and prevent them from being used with washers or on surfaces that can be scratched.

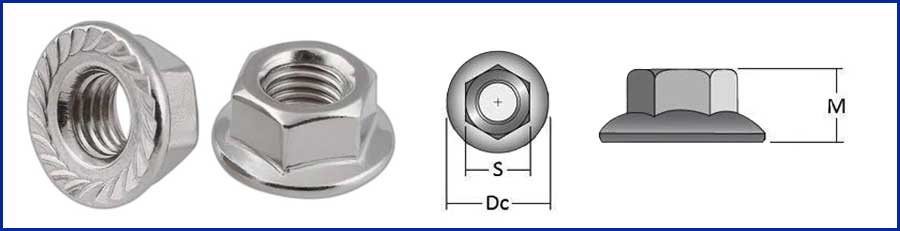

Flange Nut DIN 6923 Serrated
|

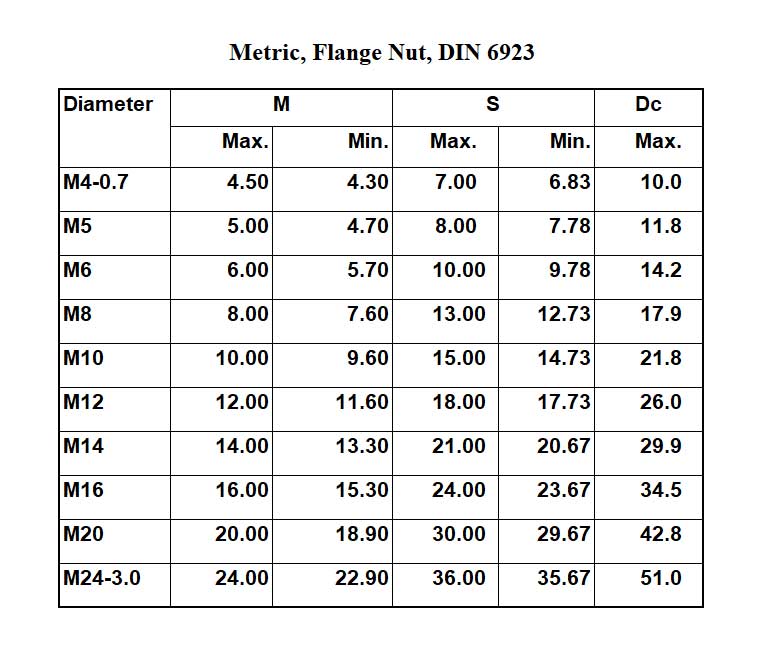

Technical Specification
|
|
|---|---|
|
Size:
|
M4-0.7 to M24-3.0 |
|
Grade:
|
Class 5,Class 6, Class 8, Class A2 |
|
Materials:
|
Low Carbon Steel, Alloy Steel & Stainless Steel(18-8, A2-70) |
|
Finish:
|
White/Blue/Yellow Zinc Plated |
