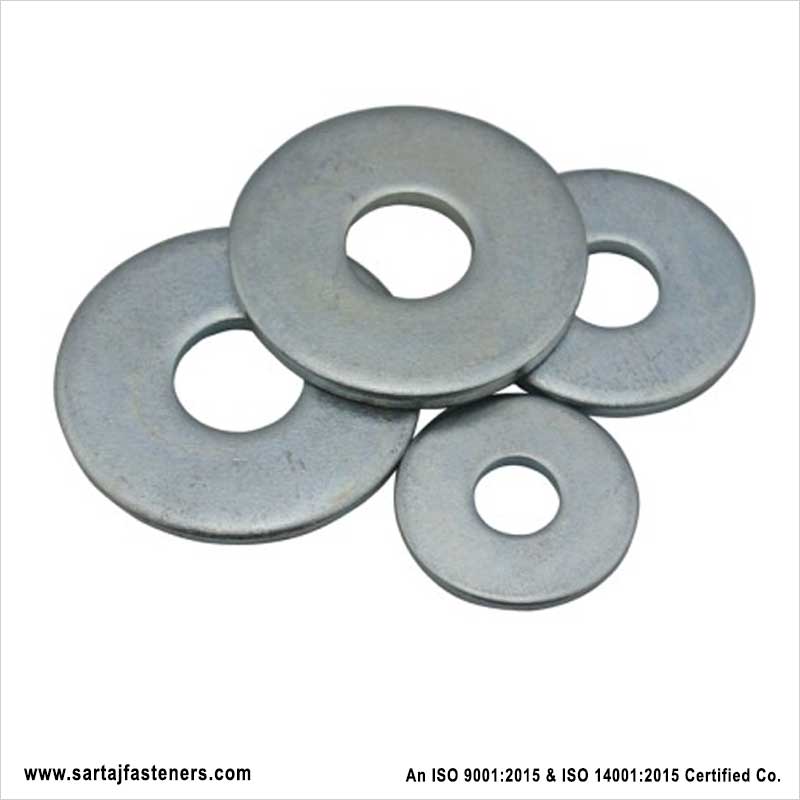

Metric Fender Flat Washer
DIN 9021

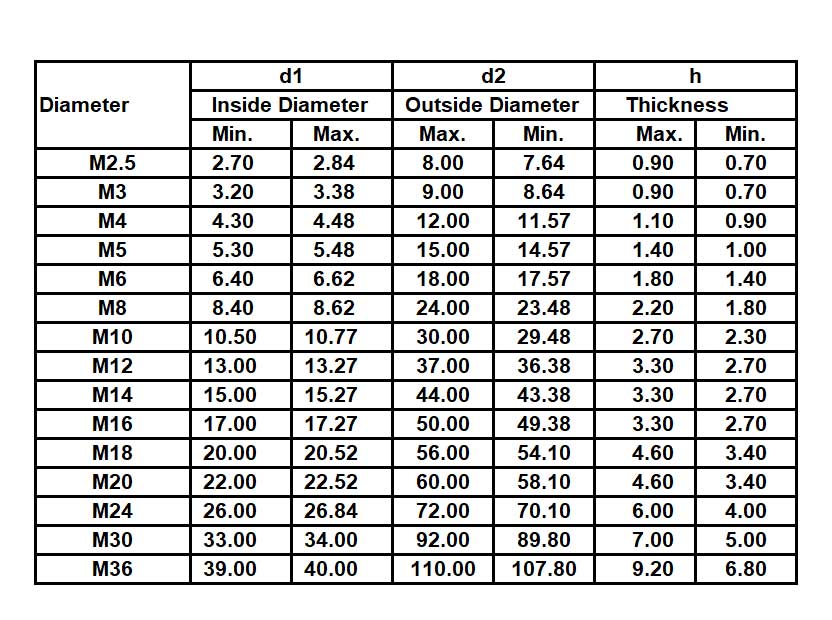

Zinc plated Steel Metric Fender washers (Cr+3 Zinc RoHS compliant). These have a Grade A rating and follow the standard DIN 9021 for dimensions. Specification sheet in Photos section.

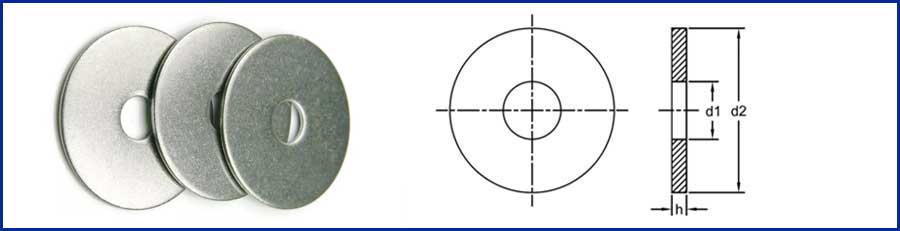

Washer Size (Inner diameter) is the size of the screw that the washer is for (Example: M8 washer for an M8 screw).
Metric Fender Flat Washer DIN 9021
|
Technical Specification
|
|
|---|---|
|
Size:
|
M2.5-M36 |
|
Grade:
|
- |
|
Materials:
|
Carbon Steel, Alloy Steel, MS, Copper, Brass & Stainless Steel (SS 304,SS 302, SS 316) |
|
Finish:
|
White Zinc Plated, Yellow Zinc Plated, Auto Black Plated, Chrome Plated & other as per customer requirement |
