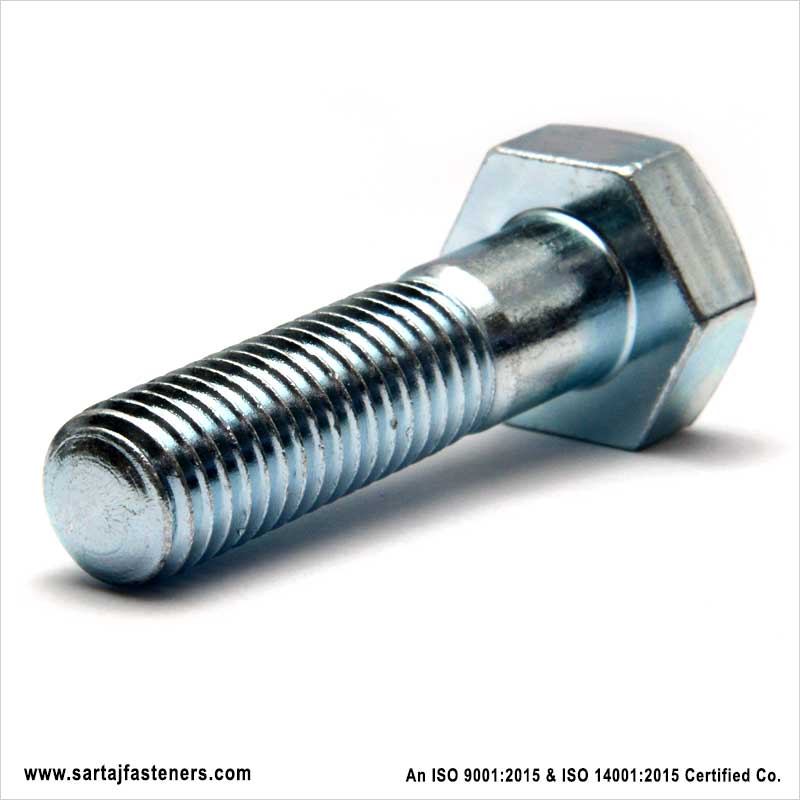

Hex Bolt Partially Threaded
DIN 931, DIN 960, DIN 7990, ISO 4014, ASME B18.2.1

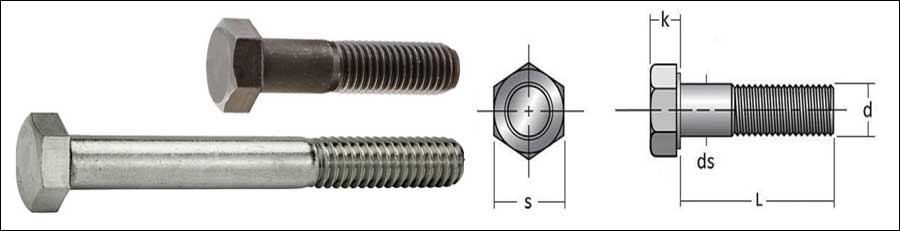

Partial thread bolts and screws offer an area below the head that is entirely free of threading. They are called partial thread bolts because of the part that has no threading. This non-thread area of a bolt, also known as the bolt shank or shoulder of the fastener, will vary in length depending on the bolt’s application.
Hex Bolt Partially Threaded
|

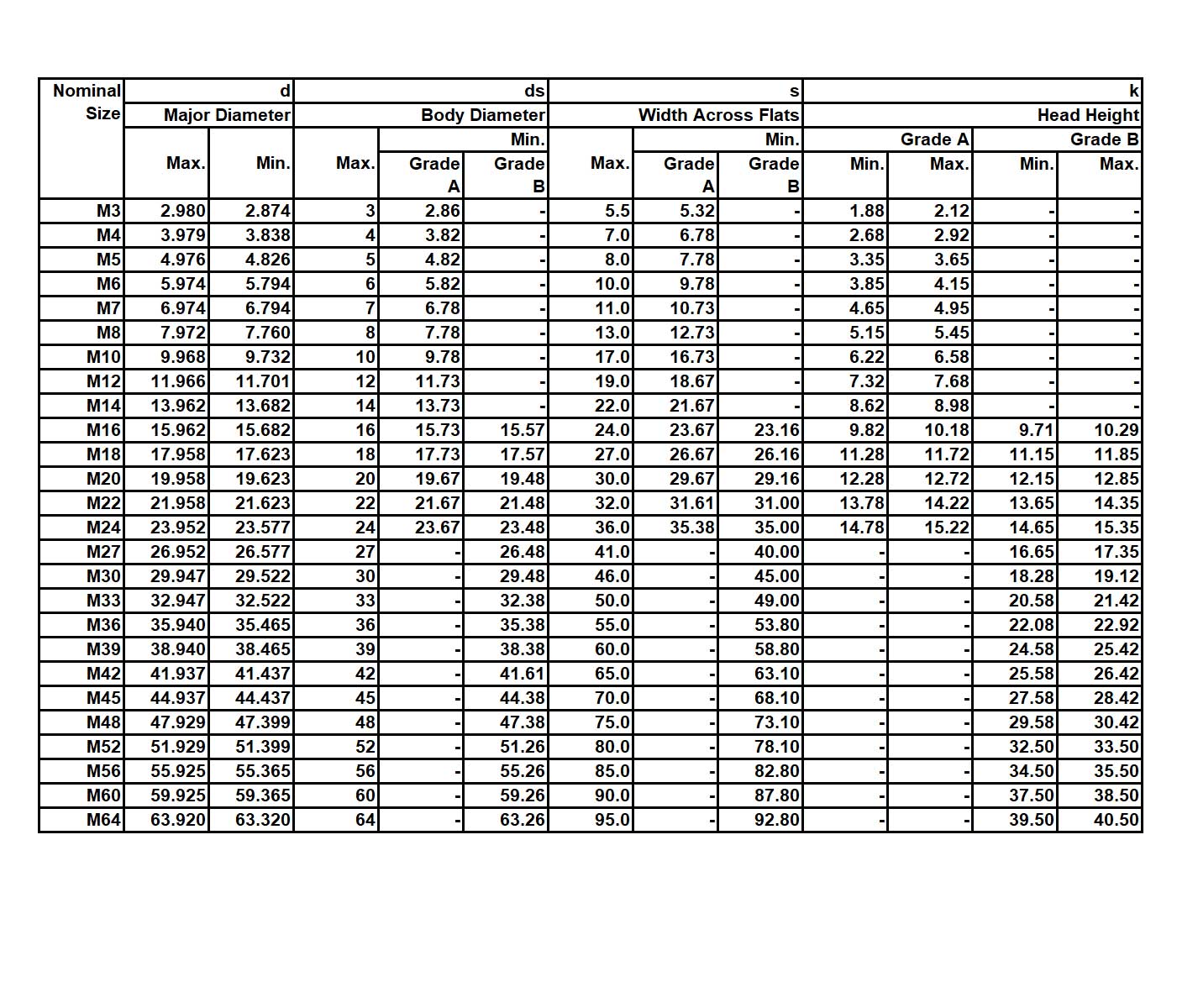

Technical Specification
|
|
|---|---|
|
Size:
|
M4-M72 #10-2″ |
|
Grade:
|
4.6/4.8,5.6/5.8, 6.8, 8.8, 10.9, 12.9 GR.2, GR.5, GR.8 |
|
Materials:
|
Carbon Steel, Alloy Steel, MS, Copper, Brass & Stainless Steel (SS 304,SS 302, SS 316) |
|
Finish:
|
White Zinc Plated, Yellow Zinc Plated, Auto Black Plated, Chrome Plated & other as per customer requirement |
