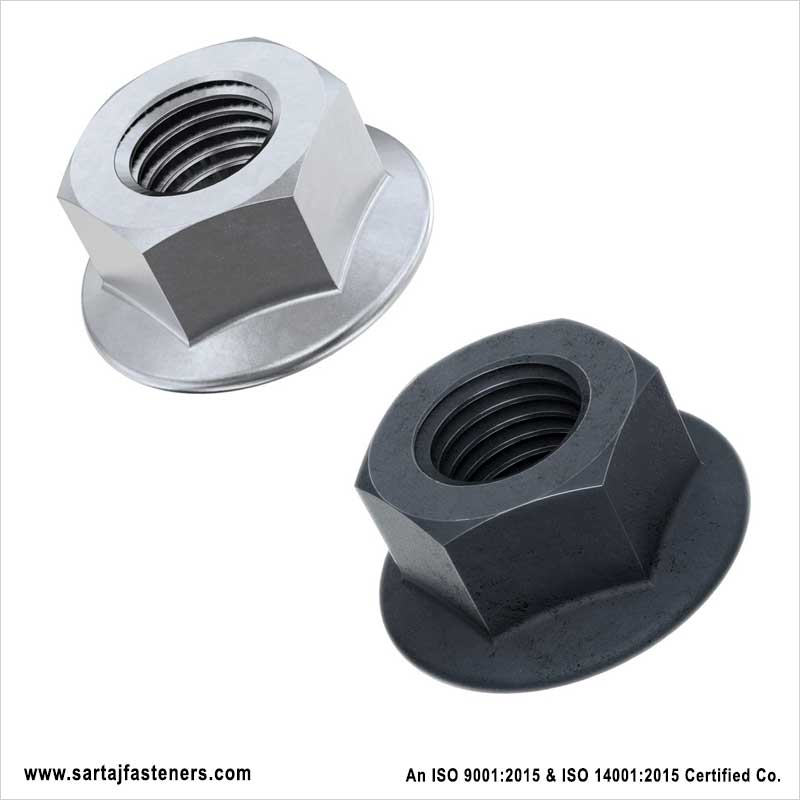

Flange Nut
DIN 6923, EN 1661
DIN 6923 Flange Nuts have a circular washer like flange shaped base that increases the weight bearing surface area to distribute the load over a greater area when tightened.

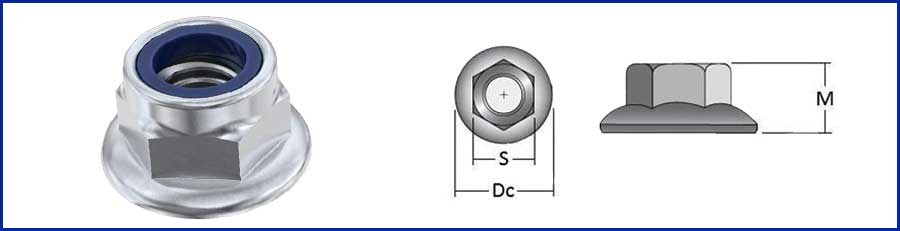

Flange Nut DIN 6923
|

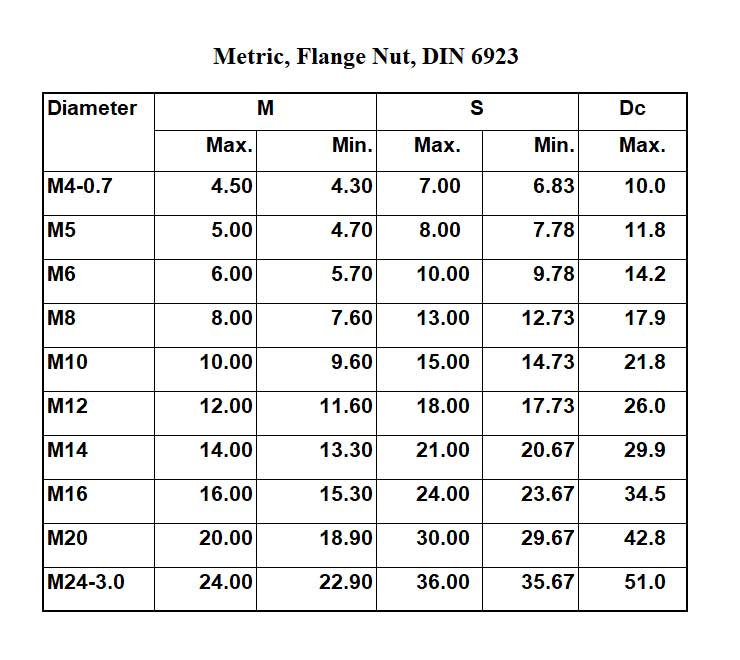

Technical Specification
|
|
|---|---|
|
Size:
|
M4 to M36 1/4″-5/8″ |
|
Grade:
|
Class 5, 6, 8, 10 |
|
Materials:
|
Carbon Steel, Alloy Steel, MS, Copper, Brass & Stainless Steel (SS 304,SS 302, SS 316) |
|
Finish:
|
White Zinc Plated, Yellow Zinc Plated, Auto Black Plated, Chrome Plated & other as per customer requirement |
