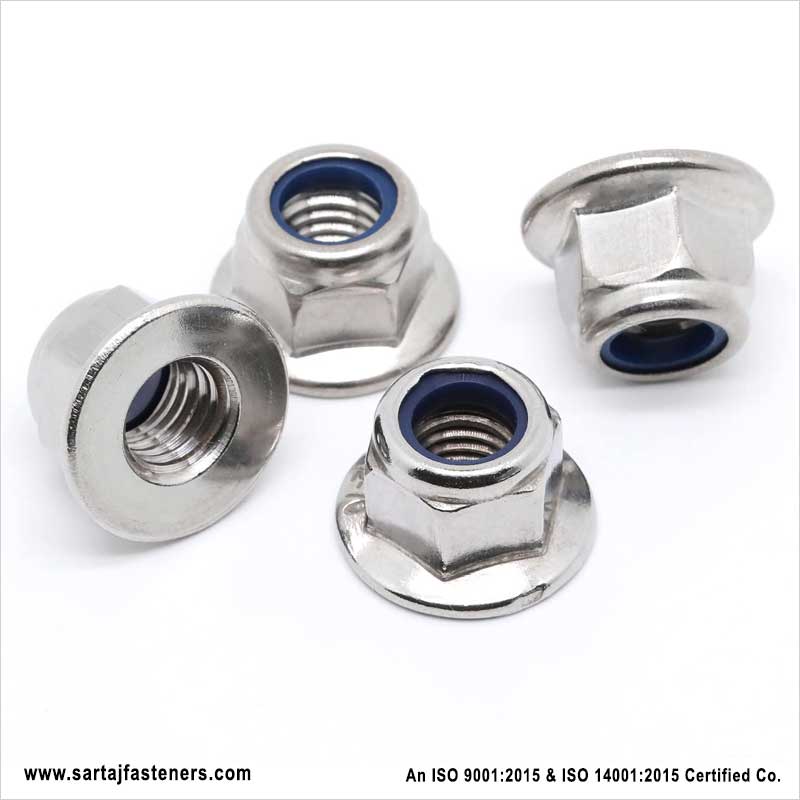

Flange Nut
DIN 6926
A nyloc nut, also referred to as a nylon-insert lock nut, polymer-insert lock nut, or elastic stop nut, is a kind of locknut with a nylon collar insert that resists turning.
The plastic insert is placed at the end of the nut, with an inner diameter (ID) slightly smaller than the major diameter of the screw. The insert deforms elastically over the threads of the screw, without having threads in turn cut into it. The nylon insert locks the nut by friction against the screw under the applied radial compressive force. Nyloc nuts retain their locking ability up to 250 °F (121 °C). The Flanged Nylock Nuts as per DIN 6926 have the additional advantage of distributing the load over a larger area.

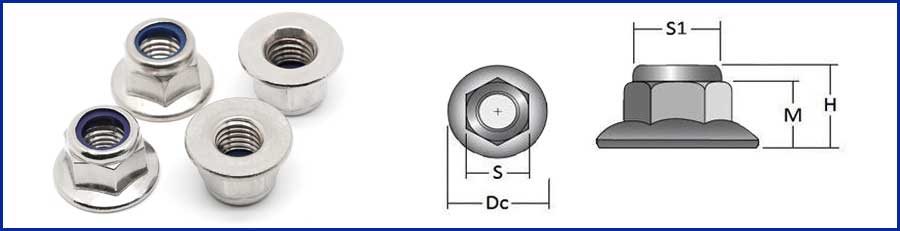

Flange Nut DIN 6926
|

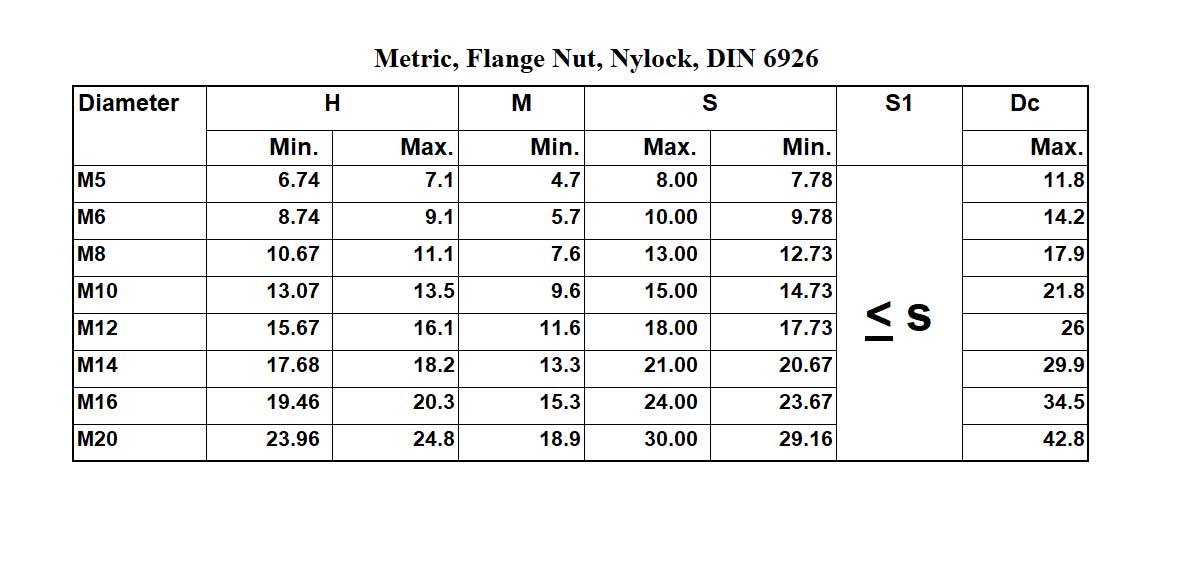

Technical Specification
|
|
|---|---|
|
Size:
|
M4-M16 #10-5/8″ |
|
Grade:
|
8.8, 10.9, 12.9, GR.A, GR.2, GR.5, GR.8 |
|
Materials:
|
Carbon Steel, Alloy Steel, MS, Copper, Brass & Stainless Steel (SS 304,SS 302, SS 316) |
|
Finish:
|
White Zinc Plated, Yellow Zinc Plated, Auto Black Plated, Chrome Plated & other as per customer requirement |
